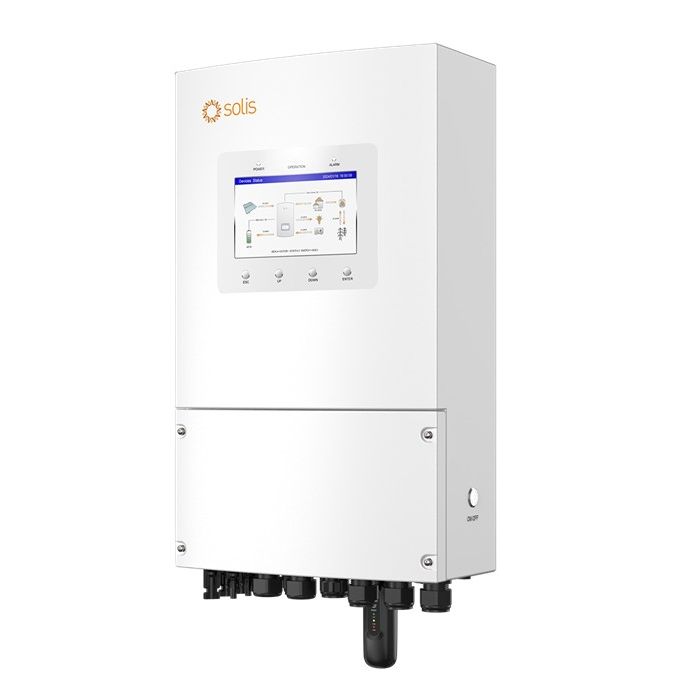

Solis S6 5kW 1 Phase Hybrid Inverter with DC - 2 MPPT for Low Voltage Batteries

The Solis S6 5kW Hybrid Inverter is designed to provide reliable energy solutions for residential and commercial applications. This advanced inverter features dual Maximum Power Point Tracking (MPPT), enabling efficient energy management from solar panels while supporting various battery types.

Key Features

• Generator Compatibility: Extend backup power duration during grid outages.
• Microgrid Formation: Multiple inverters can work together to create a microgrid.
• Dual Backup Ports: Intelligent control for critical and non-critical loads.
• Overload Capability: 200% overload for 10 seconds, ensuring power availability when needed.
• Seamless Switchover: Automatic transition time of less than 4 milliseconds from grid to backup.
• Power Stability: Maintains load stability against weak grid or generator fluctuations.

Benefits

• Enjoy uninterrupted power supply during outages, enhancing your energy independence.
• Optimise solar energy usage with dual MPPT technology for maximum efficiency.
• Reduce energy costs by effectively managing your power sources.
• Flexible installation options allow for tailored energy systems to suit your needs.
• Robust design ensures reliability in various environmental conditions.

Technical Specifications

• Input (PV Side):
  • Max. PV array size: 6 kW
  • Max. input voltage: 500 V
  • MPPT voltage range: 90 - 435 V
• Battery:
  • Battery type: Lithium-ion / Lead-acid
  • Voltage range: 40 - 60 V
  • Max. charge/discharge power: 5 kW
• Output (Grid Side):
  • Rated output power: 5 kW
  • Max. apparent output power: 5 kVA
  • Operation phase: L/N/PE
• Efficiency:
  • Max. efficiency: 96.2%
  • EU efficiency: 96.1%
• Dimensions: 335 × 560 × 253 mm
• Weight: 23 kg
• Protection Class: IP66

With the Solis S6 5kW Hybrid Inverter, you gain access to a powerful and efficient energy management solution tailored for modern energy needs. Make the switch to a smarter energy system today!
