SKU: SKI024080002

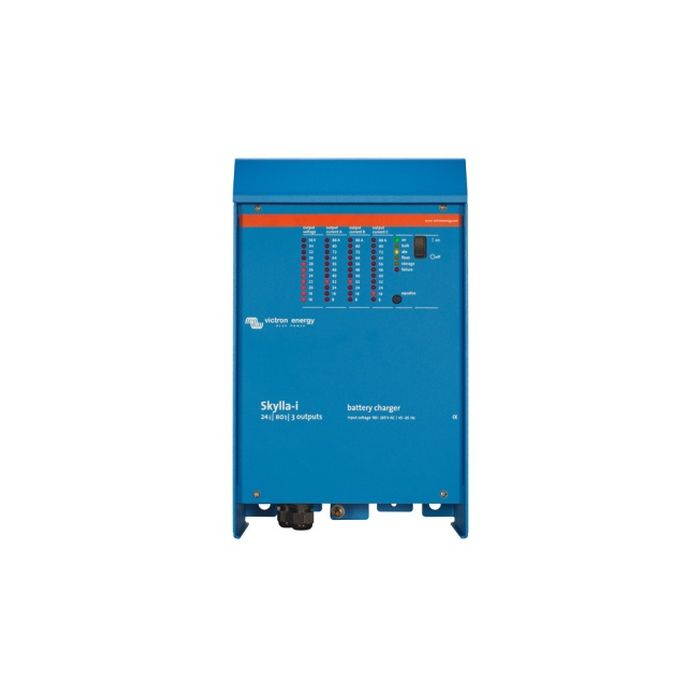

The Victron Skylla-i IP21 Battery Charger 24V-80A-230V 3 Output is a reliable and efficient charging solution for your batteries. With three outputs and an 80 Ampere capacity, it ensures rapid charging while prolonging battery life through smart management. Its robust design suits various environments, making installation seamless.
You need to log in to access the data sheet, user manual, and warranty info.
Victron Energy Skylla-i battery charger for 24V systems, with 230V AC input and three isolated outputs. It is used to charge multiple battery banks and can also be used as a power supply.
Provides 3 isolated outputs, with each output able to supply the full rated output current.
Uses a 7-stage adaptive charge algorithm for controlled battery charging.
Includes a battery temperature sensor for temperature-compensated charging.
Voltage sense helps compensate for cable resistance and associated voltage loss.
Features two RJ45 connectors with NMEA2000 protocol and galvanic isolation, plus synchronised parallel operation via VE.Can.
Model Skylla-i 24/80 (3) with 230V AC input, 185-265V AC input range and 180-350V DC input range. Rated charge current is 3 x 80A, with a maximum total output of 80A. Charge voltages are 28.8V absorption, 27.6V float and 26.4V storage. The unit operates from -20 to 60°C, with full output current up to 40°C. Protection category IP21. Weight 7kg, dimensions 405 x 250 x 150mm.
230VAC connection uses screw-clamp 10mm² (AWG 7) wiring. Battery connection is via M8 bolts. Remote on-off can be connected to a Li-Ion BMS. Several chargers can be synchronised using RJ45 UTP cables via VE.Can.
Storage mode reduces float voltage to 26.4V after 24 hours without discharge to help limit gassing and corrosion. The voltage is raised back to absorption level once a week to refresh the battery. Temperature compensation reduces charge voltage as battery temperature increases.
Weight (kg)
8
Manufacturer
Victron Energy
Commodity Code
8504406090
Dimensions (mm) (H x W x D)
230 x 340 x 500
